ARTISAN INDUSTRY, customized machined titanium parts manufacturer, titanium parts casting/cnc machining. professional technical support help you produce parts with the desired characteristics in the most cost effective manner.

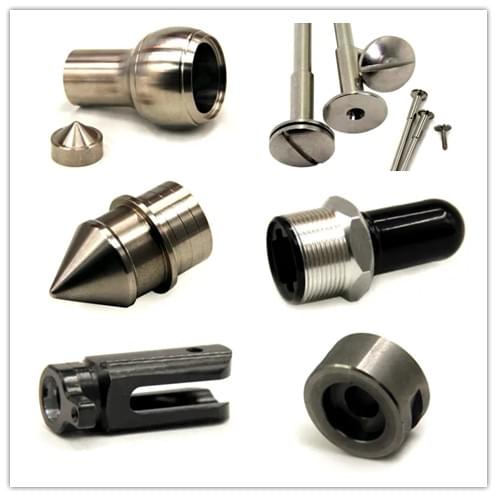

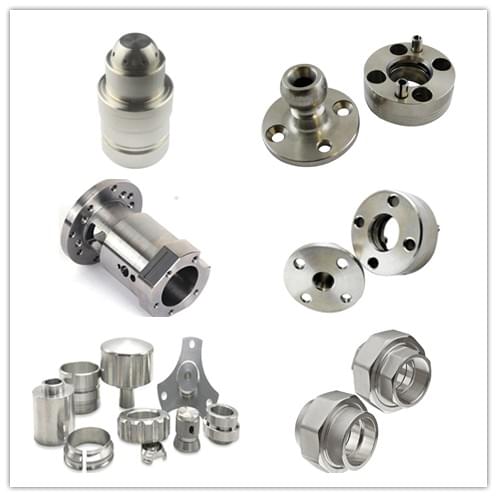

Advantage of Machined Titanium Parts
Strength and lightweight: As strong as most common steels with less than 40% of the counterpart’s weight
Corrosion resistance: Almost as resistant to chemical attack as platinum. One of best candidates for seawater and chemical handling components.
Item Name | titanium screw, titanium bolt, titanium nut, titanium tube |
Material | titanium,titanium alloy |
Grade | GR2 and GR5 (Popular Grade) GR7,GR9,GR11 |
Standard | DIN,GB,ISO,JIS |
color | blue,purple, black,green,gold,rainbow |
Specification | screw: M4-M30 Nut: M4-M24 Washer: M4-M24 |
Surface Treatment | Polishing,milling, Anodizing |
Features | light weight, Excellent resistance, anti-corrosion, excellent mechanical strength etc. |
Applications | Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheelchair, sports, anchor, weapon, etc. |
MOQ | 100pcs |
| Product Name | titanium alloy high-precision hardware parts for medical thoracic and cardiovascular interventional devices |
| Material | titannium alloy |
| Tolerance | ±0.01 - ±0.005mm |
| Surface treatment | according to requirements |
| Processing machine | mainly 5/6 axis automatic Lathe |
| Processing capacity | 500000/month |
| QC system | 100% inspection before packing |
Titanium Alloys Information for Machined Titanium Parts
Titanium offers a high strength to weight ratio and extraordinary corrosion resistance, making it an ideal choice for medical, marine, hand tools, sporting goods, and high performance automotive applications. We supply all grades of titanium alloys: Alpha alloys, Near Alpha alloys, Alpha and Beta alloys, Beta alloys. For oil and gas industry we supply high strength titanium alloys Titanium 6-2-4-6; for casting industry, we supply Grade 5 titanium and CP titanium.
Machined Titanium Parts Aircraft Parts
There are two common casting titanium alloys: Titanium Grade 2 and Titanium Grade 5. Please see below for detailed characteristics.
Titanium Alloy Grade 2
Titanium Grade 2 is light weight and highly corrosion resistant. It is an unalloyed titanium and is considered a “commercially pure” titanium (TiCP). Thanks to its varied usability and wide availability, Grade 2 is used in most of the chemical processing plants and is cold formable. Grade 2 plate and sheet can have ultimate tensile strength at and above 40,000 psi.
With moderate strength and excellent corrosion resistance, it also offers ductility and high impact toughness, and good weldability. It is used commonly in applications that require welding. Grades 2 is not hardenable by heat treatment.
Applications for Titanium Casting Alloy Grade 2
Chemical Processes Grade 2 titanium is highly resistant to chemical environments including oxidising, alkaline, organic acids and compounds, aqueous salt solutions and hot gases. Its corrosion resistance holds up in, nitric acid, mildly reducing acids and wet chlorine or bromine gas.
Marine In seawater, Grade 2 is resistant to corrosion at temperatures up to 315°C, rendering it ideal for a variety of marine uses.
Titanium Alloy Grade 5
Titanium Grade 5 is the most commonly used Titanium worldwide. Titanium Grade 5 is alloyed with 6% Aluminum and 4% Vanadium and is commonly known as Ti 6Al-4V. Grade 5 or Ti 6Al-4V, accounts for 50 percent of total titanium usage the world over.
It can be heat treated to enhance mechanical properties. It can be used in welded fabrication at service temperatures of up to 315°C. This alloy offers high strength at a light weight, useful formability and high corrosion resistance.
Applications for Titanium Casting Alloy Grade 5
Industries Aerospace, medical, marine and chemical processing industries and oil field services.
Plate The material is worked to the closest size of the desired part and the grain structure of the finished piece is more homogenous.
Heat Barrier Titanium stops the heat and does not transfer to the rest of the assembly.
