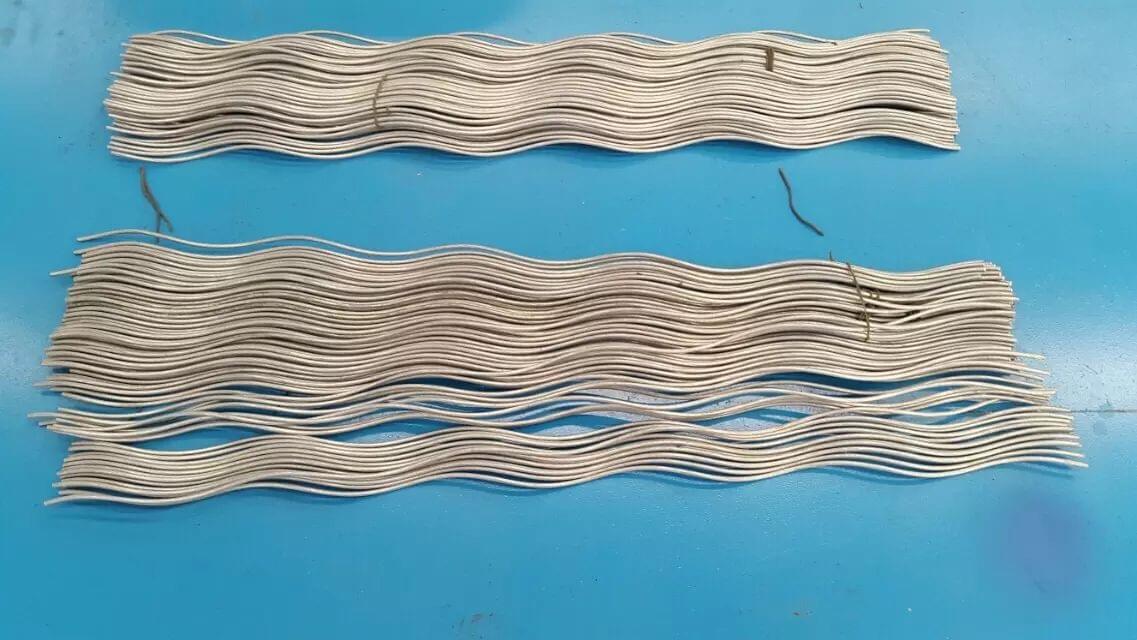

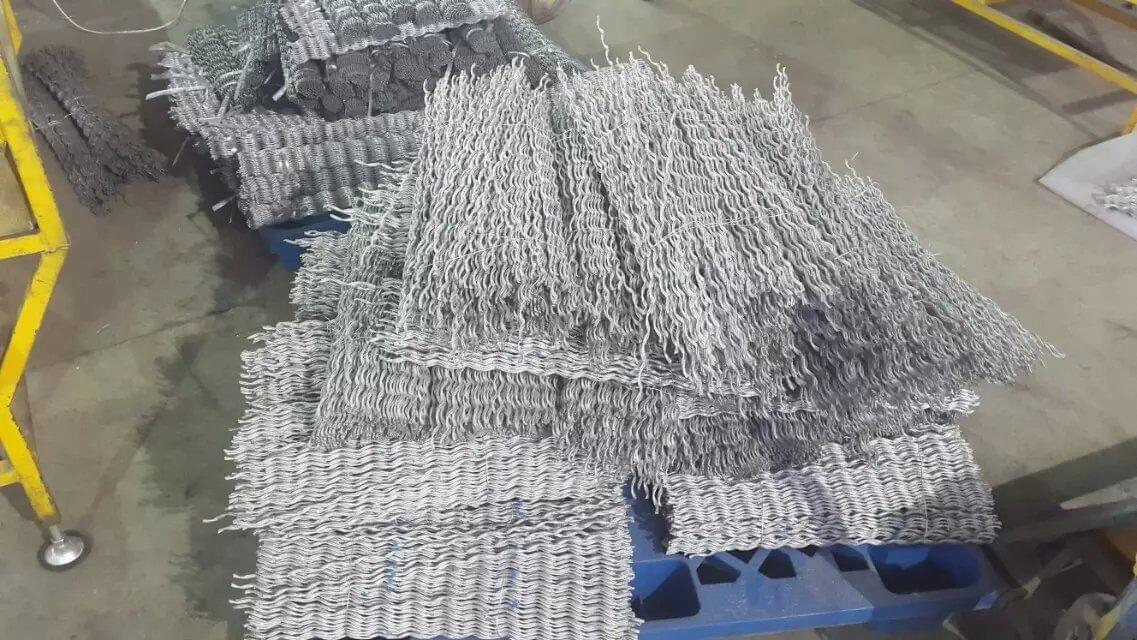

Armor rods are preformed rods used for wrapping around the outer layer of wires and mounting on the boat shaped wire clamp, in order to improve the conductor rigidity, decrease conductor vibration and protect damaged conductors by preventing the damaged area from expanding. Also, the protective rods can be wrapped in aluminum conductor and installed on the post insulator to increase the conductor rigidity and play a role in reducing vibration.
Features a. The armor rod’s material should be the same as the conductor. b. The armor rods are installed easily without any special tools. c. The armor rod has good anti-vibration performance and high flexibility. It can protect the cable and extend the system life.
Product specification Cautions: When repairing the conductor, the damaged area should be no more than 7~25% of total area. (ASCR should not damage the steel core.) When calculating the damaged area, take the total aluminum wire area for the base.
ARTISAN INDUSTRY, one of very few professional Company that engaged in Preformed fittings Equipments/Preformed Armor rods Manufacturing Production Line/Preformed tension clamp manufacturing facility/armor rods Machines/Preformed ADSS & OPGW Cable Accessories manufacturing equipments supplier. our customers purchase our machines to produce Preformed Products for Transmission & Distribution and Electrified Railway Fittings. High efficiency machines and Production lines help our customers win more and more tenders in their country electric power industry，Strong productivity ensures the quality and delivery time of their products. Main customers worldwide：AFL、PLP、SICAME. your can find our production lines in their manufacturing workshop.
2. The main equipment adopt the hydraulic drive, feature: small size, stable running, power sufficient, low noise.
Preformed tension clamps/Armor rods equipments/OPGW&ADSS Preformed fittings Machines
complete armour rod production line including:

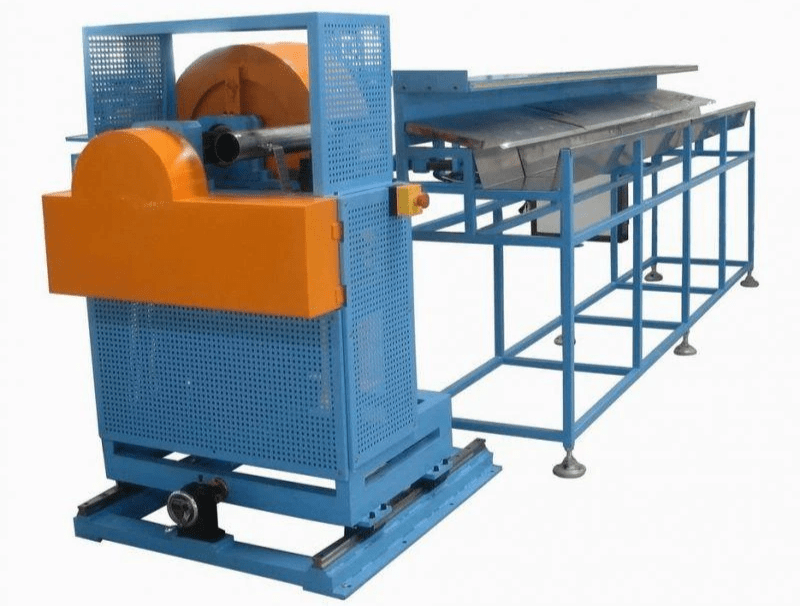

1. Preformed Armor Rods Forming Machine high quality Preformed Armor Rods Forming Machine:Suitable for processing the preformed strain clamp, preformed suspension clamp and the preformed protection fittings.
- Suitable for processing the preformed strain clamp ,preformed suspension clamp and the preformed protection fittings (material:the aluminum clad steel wire or galvanized steel wire)
- Forming speed: 0-1.5m/s , Diameter: 1.67-5.2mm（the aluminum clad steel wire or galvanized steel wire), 1.78-9.27mm（aluminum alloy wire）
- One group of product length tolerance range:±2mm
- Three kinds of feed tray selection, can be designed according to user requirements
- Equipment controlled by PLC
2. Hydraulic Bending Machine Suitable for processing the preformed strain clamp (material:the aluminum clad steel wire or galvanized steel wire)
- Suitable for processing the preformed strain clamp (material:the aluminum clad steel wire or galvanized steel wire)
- Bending speed:0-200 an hour ，Diameter: 1.67-5.2mm（the aluminum clad steel wire or galvanized steel wire), 1.78-9.27mm（aluminum alloy wire）
- The bending angle and bending diameter can be adjusted.
3. Automatic Glue And Grit Machine Suitable for processing the preformed strain clamp (material:the aluminum clad steel wire or galvanized steel wire)
- Suitable for processing the preformed strain clamp (material:the aluminum clad steel wire or galvanized steel wire)
- Glue and sand work can be completed at the same time,The speed can be adjusted for a meter a second 。
- Equipment with continuous spray and intermittent spraying fuction
4. Wire Tension Section Shaping Machine our company as a Preformed tension clamp Exporter ,provide Buy Wire Tension Section Shaping Machine For Sale ,Suitable for processing the preformed strain clamp (material:the aluminum clad steel wire or galvanized steel wire),if you need that pls contact us.
- Suitable for processing the preformed strain clamp (material:the aluminum clad steel wire or galvanized steel wire)
- twisting speed 0-1r/s, Diameter: 1.67-5.2mm（the aluminum clad steel wire or galvanized steel wire), 1.78-9.27mm（aluminum alloy wire）
- tension section length range 200-800mm
- Open design, Easy to place the workpiece
5. Chamfering Machine our company as a Chamfering Machine Suppler & Manufacturer in China,provide Chamfer the various diameter steel wire.
6. Head Grinding Machine our company as a Head Grinding Machine Supplier & Manufacturer in China,Can deal with the head of a variety of wire diameter of aluminum alloy wire.
