Professional Composite Insulators Fiberglass Rods manufacturer (Frp/Ecr Core)
Fiber glass rod is used for production of silicon rubber insulator of electrical overhead lines. It is an important part of composite insulator and core material of composite insulator.
A silicon rubber insulator is also recognized as a composite insulator or polymeric insulator. One of its significant parts, fiberglass rod, as its name, is made of fiberglass material and used as supporting core of silicon rubber insulator. The fiberglass rod consists of dozens of fiberglass threads which makes it enable to bear high tension load in the vertical direction. This is also why the fiberglass rod is selected as supporting the core of composite insulators, especially on tension-type insulators and suspension insulators on electrical overhead lines.
The rod of polymeric insulator has very good performance on the mechanical tensile property, while its cantilever load performance is not so optimizing as the tensile property. Even though in certain projects we use polymer insulator post type in power substation, its bending load and deflection have some problems compared with traditional ceramic post insulators.
ECR Grade Fiber Glass Epoxy Rod Machining Process：

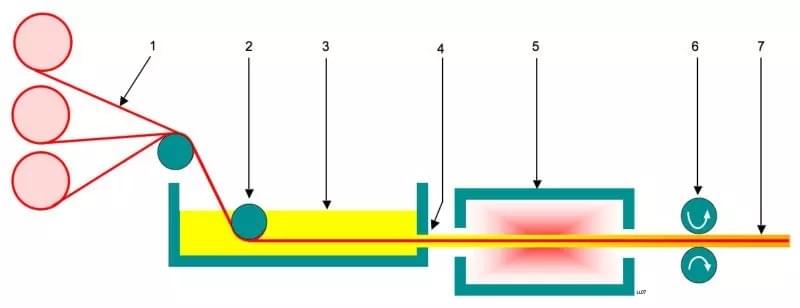

1 - Continuous roll of reinforced fibers/woven fiber mat 2 - Tension roller 3 - Resin Impregnator 4 - Resin soaked fiber 5 - Die and heat source 6 - Pull mechanism 7 - Finished hardened fiber reinforced polymer

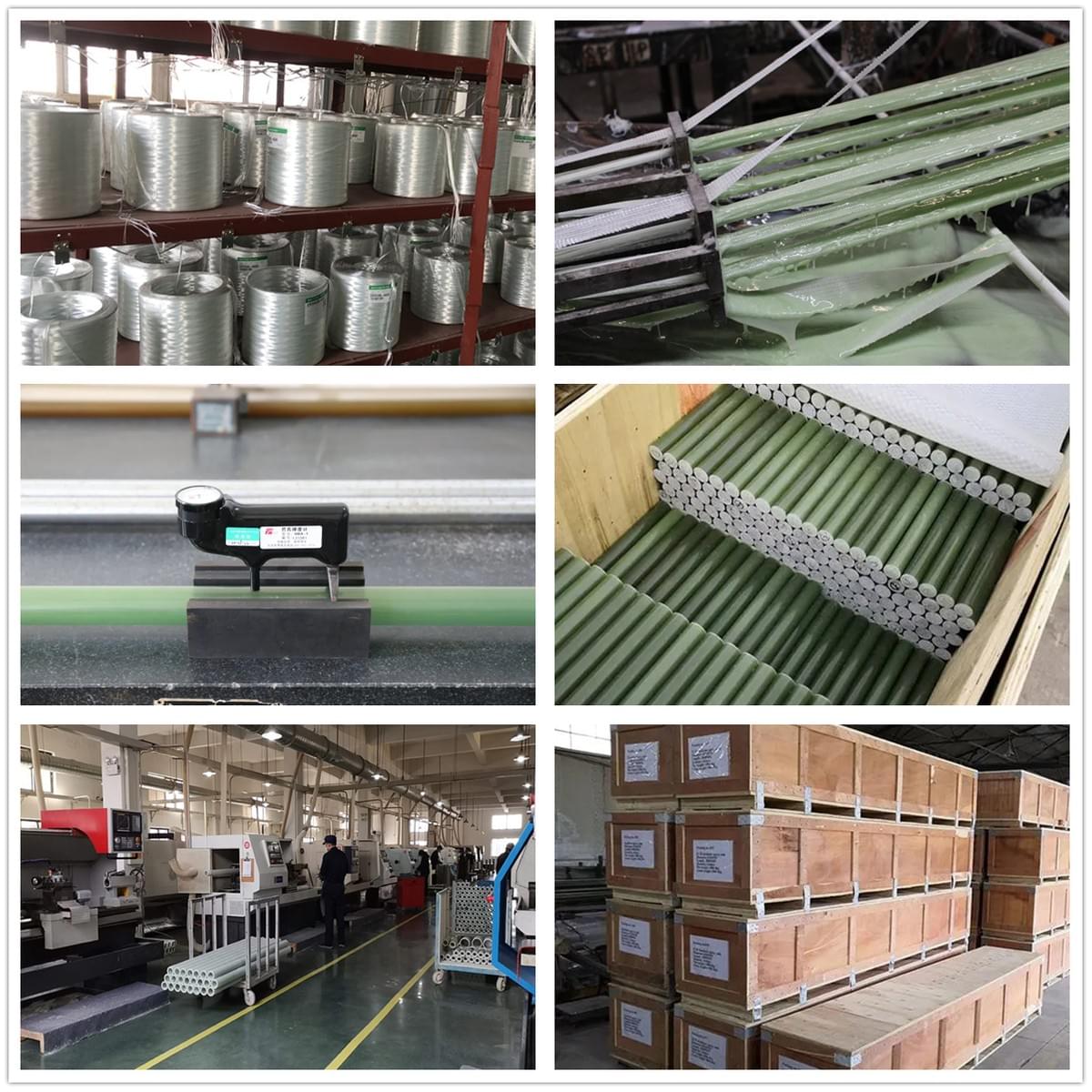

Insulating Solid Rod is made of ECR glass reinforced epoxy resin.We use continuous pultrusion procss .The products fullfill The standard of IEC61109.Insulator core rods also are also called fiberglass rod,FRP rod,GRP rod,fiberglass bar,Insulation rod,fiberglass stick and so on.
1. Standard: IEC61109
2. Material: E glass and epoxy resin.
3. Process: Continuous pultrusion.

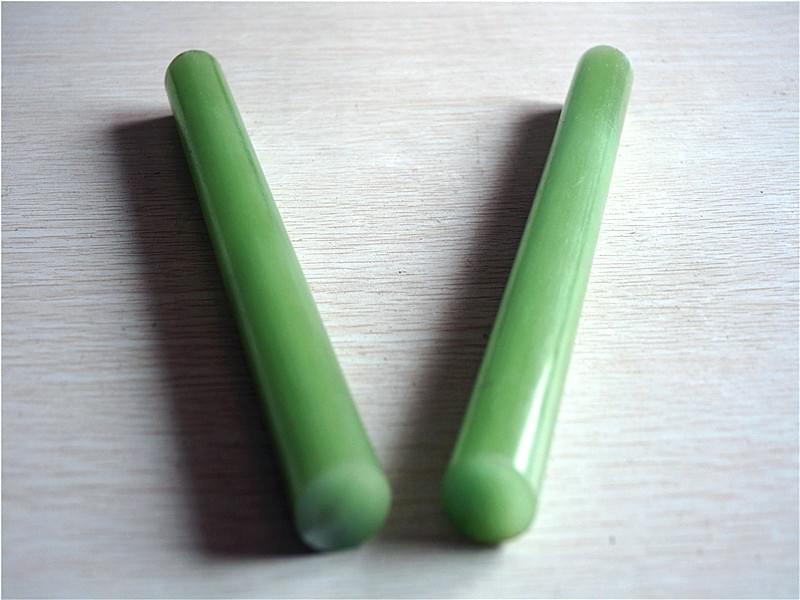

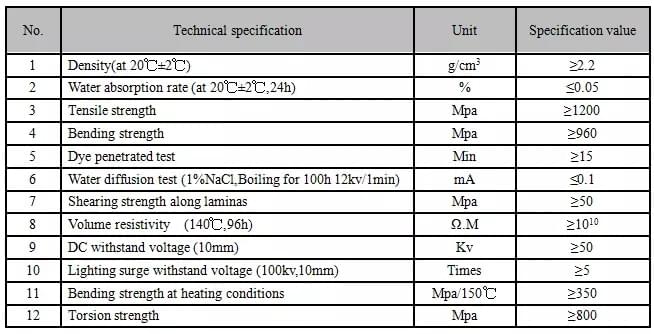

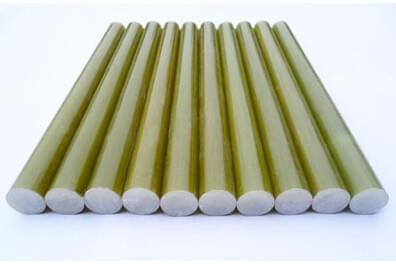

E-glass Epoxy Rod (FRP Rod)：
Main Features:
1. Pultrusion technology
2. Diameter: 6mm to 130mm; length according to requirements.
3. Superior mechanical strength, corrosion resistance and flame resistance.
4. Excellent electrical insulation performance & high temperature resistance.
5. IEC, ASTM, GB Standards.
Application reference:
Diameter 16--38mm for composite tension & suspension insulators
Diameter 22--54mm for composite pin insulators
Diameter 24--80mm for composite line post insulators
Diameter 28-130mm for composite station post insulators
Diameter 20--36mm for composite fuse cutout (polymer insulators)

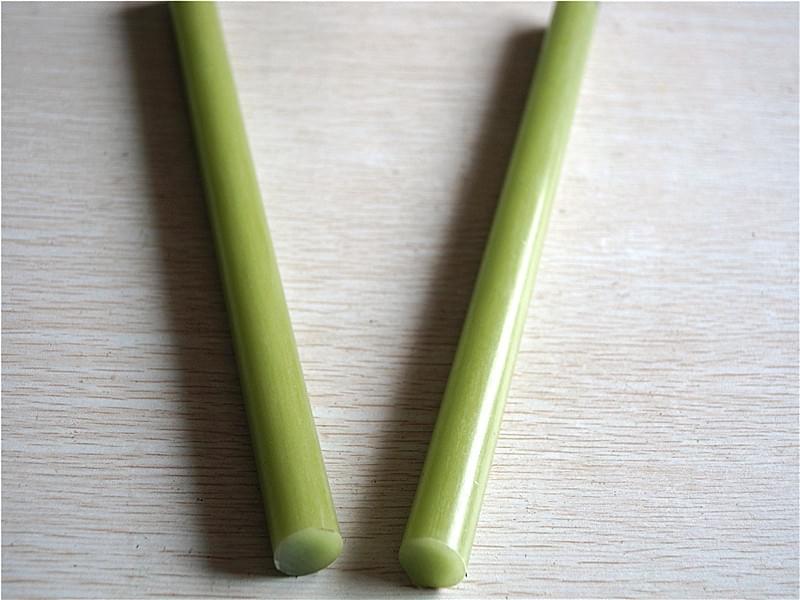

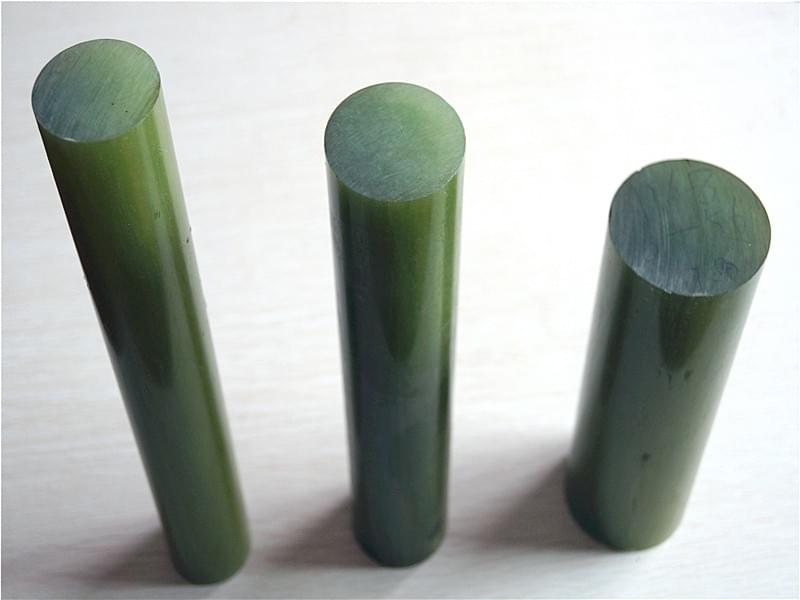

ECR-glass Epoxy Rod (ECR Rod)：
Main Features:
ECR rod has all performances that FRP Rod has, but also has extra good stress-corrosion resistant performance as well as high temperature resistance.
1. Pultrusion technology
2. Diameter: 6mm to 130mm; length according to requirements.
3. Superior mechanical strength, corrosion resistance and flame resistance.
4. Excellent electrical insulation performance.
5. IEC, ASTM, GB Standards.
Application reference:
Diameter 16--38mm for composite tension & suspension insulators
Diameter 22--54mm for composite pin insulators
Diameter 24--80mm for composite line post insulators
Diameter 28-130mm for composite station post insulators
Diameter 20--36mm for composite fuse cutout (insulators)
Epoxy Winding Tube:
1. Winding technology
2. Superior mechanical strength.
3. Excellent electrical insulation performance.
Inner Diameter Scope of Epoxy Winding Tube: (Outer Diameter and Length can be made on request)
20, 23, 24, 26, 30, 32, 36, 38, 40, 43, 47, 48, 50, 54, 55, 56, 57, 60, 63, 64, 65, 66, 68, 70, 73, 76, 77, 80, 83, 90, 92, 100, 102, 103, 110,135, 140, 145, 146, 160, 170, 176, 188, 190, 198, 210, 230, 240, 248, 260, 268, 270, 290, 300, 310, 320, 325, 340, 350, 360, 370, 380, 390, 400, 410, 500, 520, 550
Application reference of Epoxy Winding Tube:
Winding Tubes are mostly used in Hollow Insulator & Bushing, surge arrester, high voltage switch, transformers.
Epoxy Pultruded Tube:
1. Epoxy Pultruded Tubes are made by Pultrusion technology.
2. Excellent electrical insulation performances.
3. Superior mechanical strength and good corrosion resistance.

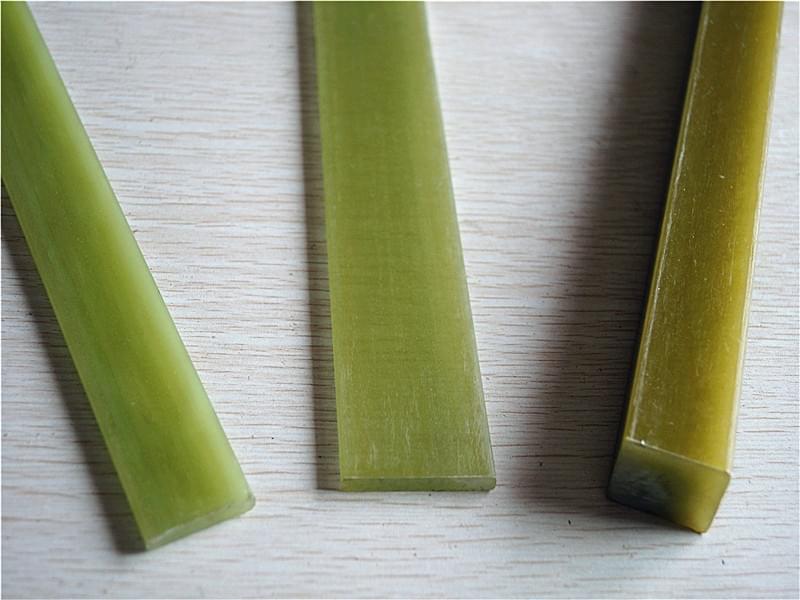

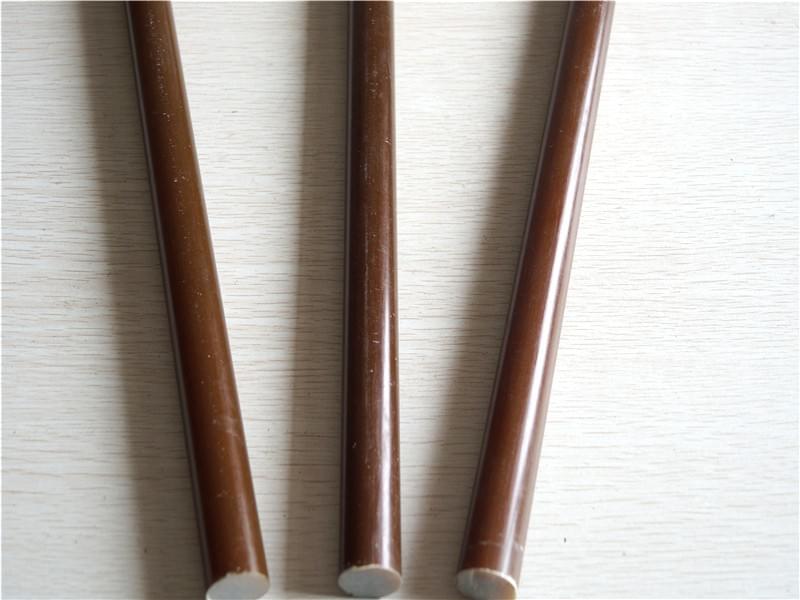

Epoxy Rectangular Flat Bar
1. Rectangular Flat bars are made of Pultrusion technology
2. High Temperature Resistance
3. Excellent electrical insulation performance
4. Superior mechanical strength and good corrosion resistance
5. Suitable for transformers and High-Voltage Switches as well as electrical products.

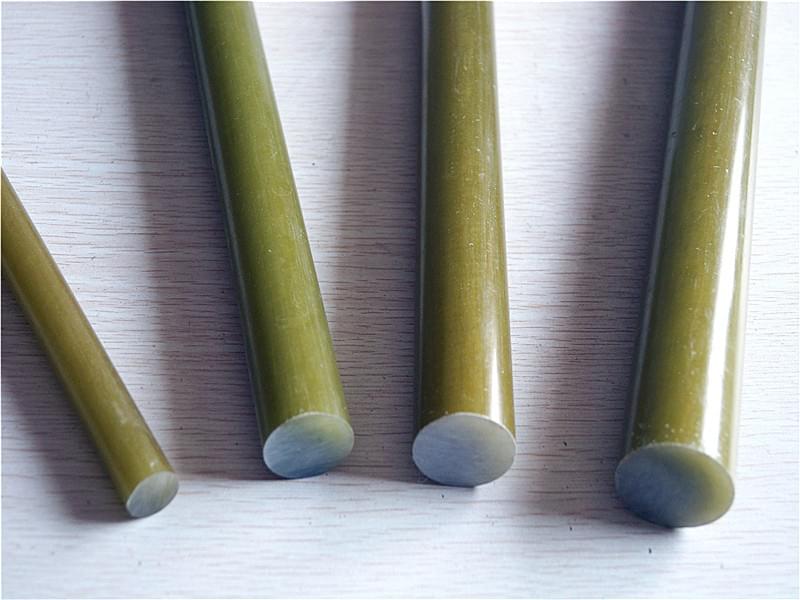

The fiberglass rod can be made into different lengths and diameter to fit different demands of insulators.
For a common silicon rubber insulator of 11,33kV, the diameter of the rod of the insulator can be 16mm, 18mm or more. While for the power substation and transmission line, the diameter of the fiberglass rod shall be bigger to enable a bigger mechanical breaking load.
How FRP rods crimping with Fittings when polymer insulators production？
Answer： you need to buy crimping equipments,Frp Grinding Machine of Insulators Production FRP grinding machine is applied in the production line of electrical silicon rubber composite insulators of overhead power lines. It provides an essential technic during the production process.
