Titanium screws are light-weight, new-higher, ultra-hard, ultra-corrosion-resistant, and ultra-anti-loose. The grades can reach the standard of 8.8 grades and 10.9 grades and the weight is only 57 percent of that of the same grade steel screws. The products are applied in the fields of bicycles, motorcycles, automobiles, racing cars, yachts, sports, electronics, pharmaceuticals, petroleum, metallurgy, chemical industry, desalination, ocean engineering, construction industry, etc.
| Standard: | DIN ,ASME,ANSI ,JIS customized |

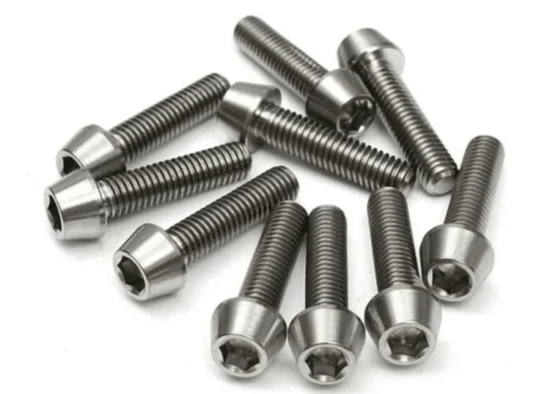

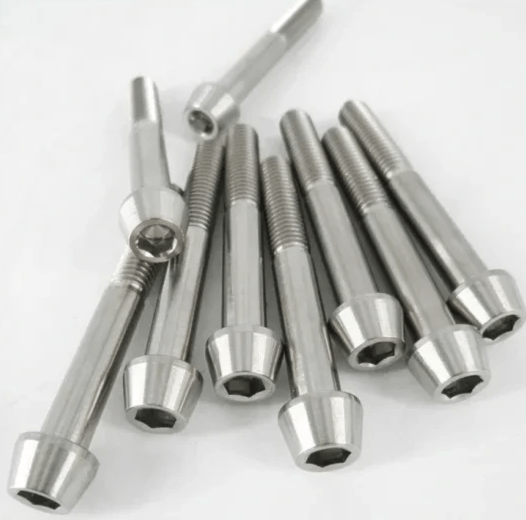

| Size: | Titanium Bolts Allex Hex Bike Stem Tapered Head Screw/M3 M4 M5 M6 M8 M10 Gr2 Gr5 Torx Head Titanium Screws / Titanium Fasteners |
| Surface treatment: | Polishing, anodizing, vacuum coating |
| feature: | 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
| OEM service : | Yes 1.Free laser logo 2.Signed NDA ,Accept any products customization 3.Free basic packaging |
| Drawing formats: | Solid work,Pro/Engineer,AutoCAD,UG,pdf |
| Color: | Green, gold, blue, black, natural, purple, color |
| Equepment used: | CNC lathes, Milling machine, Machining Center,Thread rolling machine |
Magnetic needle polishing machine
pro-bolt titanium Appliation: Widely used in industrial, motorcycle,automotive, chemical, bicycle and other fields CertificationISO9001:2015
Supply titanium fasteners,titanium bolts and nuts,washers,titanium bicycle nuts,grade various,good price
Dimensions of Titanium Pan Head Screws:
| D1 | M3 | M4 | M5 | M6 |
| p | 0.5 | 0.7 | 0.8 | 1.0 |
| d2 | 6 | 8 | 10 | 12 |
| k | 1.8 | 2.4 | 3 | 3.6 |
| n | 0.8 | 1 | 1.2 | 1.6 |
| t | 0.7 | 1 | 1.2 | 1.5 |
| L | 3-60 |

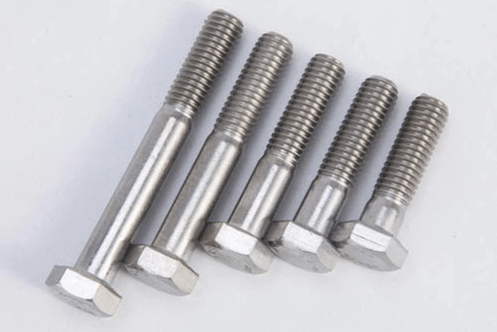

Standard:ASME/ANSI B 18.2.1,IFI149,DIN931,DIN933,DIN558, DIN601,DIN960, DIN961, ISO4014,ISO4017
Grade:TA1,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC3,TC4,TB2,Gr1,Gr2,Gr3, Gr5, Gr7, Gr12etc
Size:various ad type
MinimumOrder:according to customer demand
soonest delivery
sea-worthy package
Packing:bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand
Application:Structural Steel; Metal Buliding; Oil&Gas;Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating,Bicycle,Motorcycle,MedicalIndustry,Surgicalimplants,Chemicalindustry,Aerospace,Spaceflight,Airplane,Ship,Auto,Cars,Wheelchair,Sports,Military etc.
Gr.5 Gr.7 Gr.12 titanum alloy fastener for chemical use
AVAILABLE SIZES
M2~M26, #10~2-1/2
STANDARD

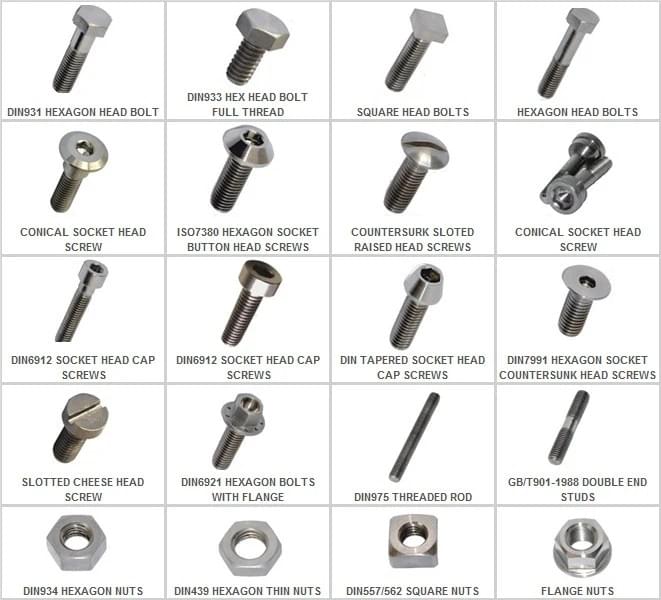

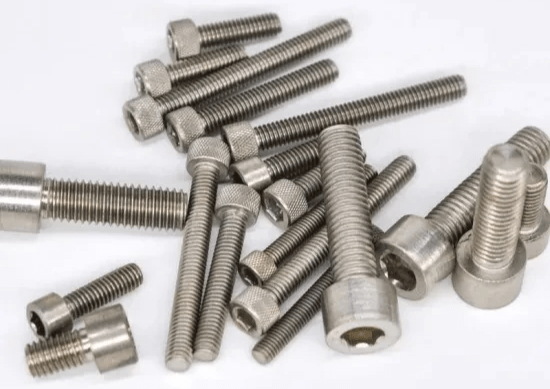

DIN 912, DIN913, DIN916, DIN 933, DIN 934, DIN963, DIN 795, DIN 796, DIN 7991, DIN 6921, ISO 7380, ISO 7984, ASME B18.2.2, ASTM B18.2.1, ASME B18.3, etc…
Type

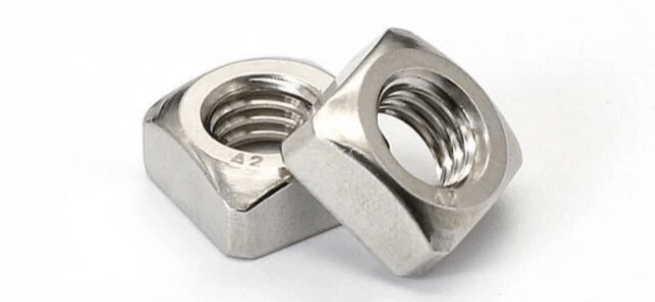

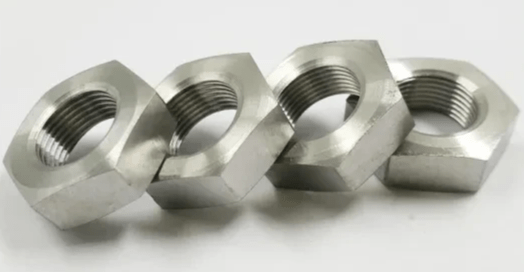

bolts, washers, nuts, thread rods
EXAMPLE APPLICATIONS
Bicycle,Motorcycle,MedicalIndustry,Surgicalimplants,Chemicalindustry,Aerospace,Spaceflight,Airplane,Ship,Auto,Cars,Wheelchair,Sports,Military etc.
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM | UNS No | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 | 15 |
| TITANIUM MATERIALS SUPPLY SCOPE | ||||||||||
| TITANIUM GRADE | UNS NO. | WIRE | BAR | SHEET | PLATE | TUBE | PIPE | FITTING | FORGING | FASTENER |
| Ti Grade 1 | R50250 | √ | √ | √ | √ | √ | √ | X | √ | √ |
| Ti Grade 2 | R50400 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 3 | R50550 | √ | √ | √ | √ | X | X | X | √ | √ |
| Ti Grade 4 | R50700 | √ | √ | √ | √ | X | X | X | √ | √ |
| Ti Grade 5 (6Al 4V) | R56400 | √ | √ | √ | √ | X | X | X | √ | √ |
| Ti Grade 7 (0.2Pd) | R52400 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 9 (3Al 2.5V) | R56320 | √ | √ | √ | √ | √ | X | X | √ | √ |
| Ti Grade 11 | R52250 | √ | √ | √ | √ | √ | √ | X | √ | √ |
| Ti Grade 12 (0.3Mo 0.8Ni) | R53400 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Ti Grade 17 | R52252 | X | √ | √ | √ | √ | √ | X | √ | √ |
| Ti Grade 23 (6Al 4V Eli) | R56401 | √ | √ | √ | √ | X | X | X | √ | √ |
| Notes 1) √-Available, X-Unavailable | ||||||||||
| Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details. | ||||||||||
| Notes 3) It may differs a little for materials in different sizes, please also contact us. |
